You are here：Home >> Products >> Camera >> Camera for monitor

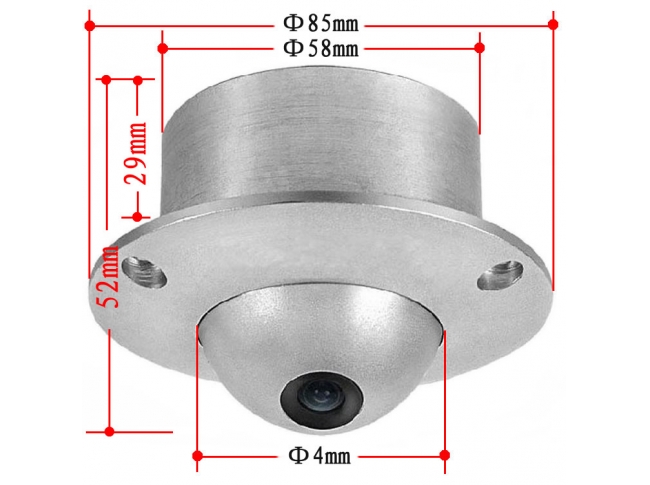

Name：Surveillance camera / special elevator monitor camera / UFO hemisphere / ultra wide angle / original HD 700 line
Model：JL-BQ-7005
Product Features：
 Elevator elevator monitoring camera, camera, flying saucer camera, indoor camera. Easy installation, hemispherical shell design, beautiful appearance, simple structure, easy installation, can be freely adjusted monitoring direction.



Type: General (with required to receive customized)

The photosensitive element: the original chips

The lens size: Standard 3.6MM, optional 2.8MM

Signal format: PAL

Color: color

Waterproof grade: 1P66

Power supply: DC12V+-1

Signal to noise ratio: >52DB

Maximum power: the maximum power dissipation of 12W

Minimum illumination: LUUX (IR LED on)

Video output: 1.0vp-P, 75

Gain control: automatic

Backlight compensation: automatic

Exposure mode: electronic exposure

Synchronization: synchronization

Working temperature: -15 degrees to 80 degrees

Lens selection reference:

The irradiation angle of shot size recommended irradiation distance

4mm 69.9 degree 0-6 meters

6mm 50 degree 6-10 meters

8mm 38.5 degree 10-20 meters

12mm 26.2 degree 20-35 meters

16mm 26.2 degree 30-50 meters
