You are here：Home >> Products >> Car LCD Monitor >> 7-inch Series

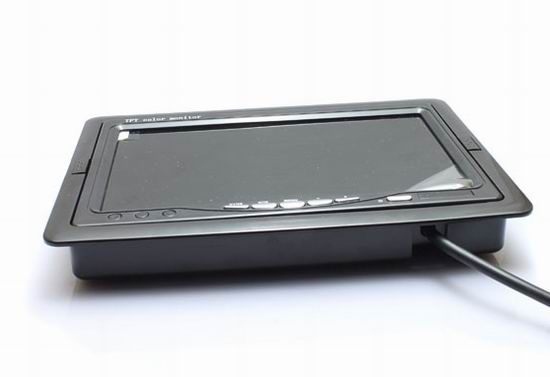

Name：video/audio,7-inch LCD monitor,7-inch car monitor,2-way video,1-audio
Model：JL-YJC-7003-1
Category：7-inch Series
Product Features：

7 inch TFT-LCD monitor ,car reversing monitor

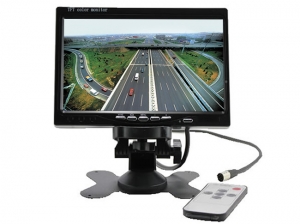

Automatic reversing , Headrest  design , 2 video inputs,1 audio input







Main technical parameters

7 inch TFT-LCD monitor


Model:JL-YJC-7003-1


Automatic reversing


Hesdrest  design


Resolution: 1024*600


Screen ratio: 16:9(can be set 4:3)


Sign of system:NTSC/PAL


Externality dimension: L173×H113×P21(mm)

Headrest dimension: L193×H134×P30(mm)

Power input:DC 9V ~35V

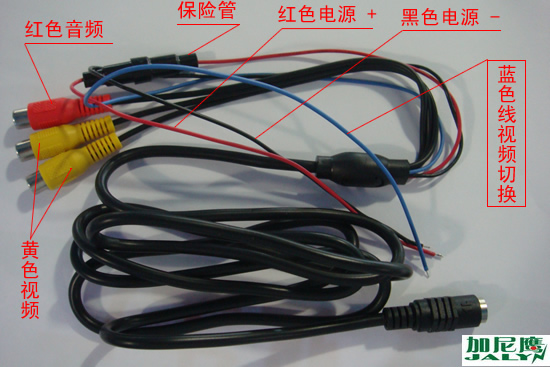

Power:red cable-- positive


      black cable-- negative


      blue cable-- Automatic reversing


Video input:two ways  (yellow RCA)

Audio input:one way(red RCA)

Weight:676g
