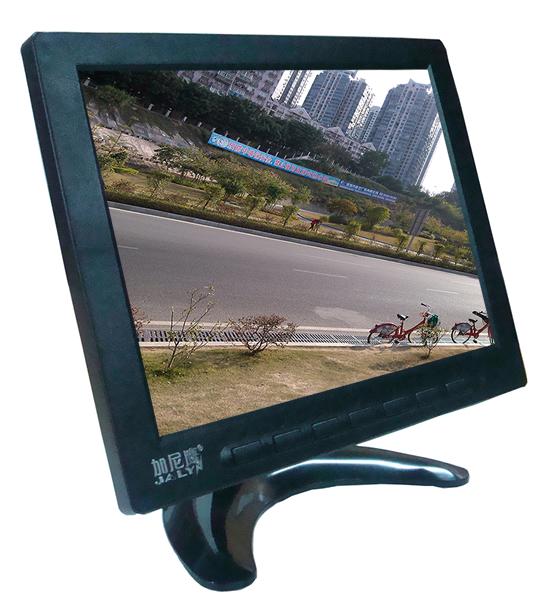

8 inch high-definition LCD monitor VGA+AV+BNC video interface, simple and stylish ultra-thin fuselage, folding bracket design, light and portable. High resolution, TFT LCD screen, the image is clear and delicate, colorful. Support BNC input for a professional security monitoring. In support of the 15 pin VGA input, high quality built-in speakers, flip the image support under control, timer switch machine.
.jpg)
.jpg)
用(4).jpg)
.jpg)
The main technical parameters:
1 display: 8 inch 4:3 LCD HD digital screen cross line can be set.
2 the best resolution: 800*600/1024*768
3 contrast: 400:1
4 brightness: 400cd/m2
5 response time: less than =12ms
6 visual angle: 160 degrees 160 degrees horizontal / vertical
7 refresh rate: 60-75HZ
The 8 signal input interface: AV/BNC/VGA
9.1 road VGA is connected with the computer host, AV1/AV2 video, BNC video 1,
The red AV audio (3 channel video state, VGA state without audio)
PAL/NTSC
10 working temperature: -10 degrees Celsius to +50
The 11 menu language: 8
12 power: 12V 1A
13 product dimensions: length * width * thickness 198*162*35mm
14 color box packaging, size: length * width * thickness 330*240*70mm
The 15 wall hanging installation hole size: 75*75mm
Standard:
1 power adapter 12V 1A 1
2 manual 1
3 Desktop Support 1
4.BNC extension cable 1 meters 1
